Since PEEK materials were identified as suitable for 3D printing technology and additive manufacturing to obtain high performance implants for use in the human body, this has led to an additional avenue for personalization of medical implants. As medical breakthroughs and 3D printing technologies mature, the combination of the two has resulted in a "1+1>2" effect, and there are many cases in the medical community where 3D printing has been used to successfully treat fractures, heart bypasses, maxillofacial procedures, and other procedures of varying difficulty. The following is an in-hospital 3D printed implant surgery from Skåne University Hospital in Sweden.

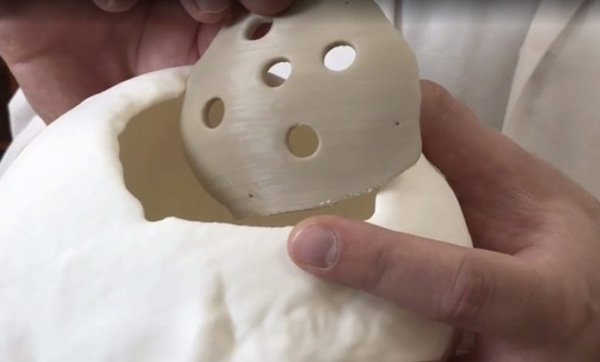

Recently learned by foreign 3D printing information station：Skåne University Hospital is the first hospital in the world to 3D print a PEEK cranioplasty implant on site for it to be successfully received by a patient. The implant, based on Evonik‘s VESTAKEEP PEEK biomaterial filament, was 3D printed using the ApiumM220 3D printer from the German company Apium. While this is the first reported case of an implant to be 3D printed and implanted in the same hospital location, other companies.

“We are currently evaluating a method for printing cranioplasty implants that can be used in surgeries. With this method, we will have the entire chain, from designing and printing implants to fitting and surgery, in-hospital”, said Einar Heiberg Brandt, medical engineer in Clinical Physiology and Nuclear Medicine at Skåne University Hospital and Wallenberg Centres for Molecular Medicine.

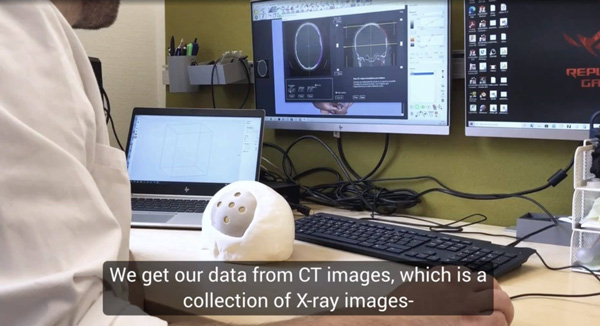

With the help of CT images, an implant is designed and 3D printed with a specifically adapted and well-tested biocompatible plastic material. The ApiumM220 enables 3D printing of high temperature PEEK materials so that the implant can then be sterilized at the hospital’s sterile center before it is ready for surgery on the patient.

“As far as we know, we are the world’s first to make 3D implants entirely in a hospital, which means that the implants will be better adapted to the patients, right from the start. This will lead to faster surgeries and fewer complications”, Einar Heiberg Brandt says. Recently, the first surgery was performed with a hospital-printed cranioplasty implant. The surgery was part of a ‘one-size-fits-all’ study.

Surgical Conclusion

“The surgery was successful. The patient is a 40-year-old woman who, after an accident, needed a cranioplasty. The study hopes to show that the surgeries can be carried out more quickly and that the risk of infections is reduced. Specifically adapted implants also reduce the risk of skin damage and enable our patients to recover faster”, comments Peter Siesjö, consultant in Neurosurgery and Pain Rehabilitation at Skåne University Hospital and professor at Lund University.

Some of the reasons why a patient needs cranioplasty are injuries, tumors and infections. Einar Heiberg Brandt identifies many possibilities with the new method: “This is only the beginning—she said. There are no barriers to writing other types of bone implants.”

Auxiliary equipment and silk materials

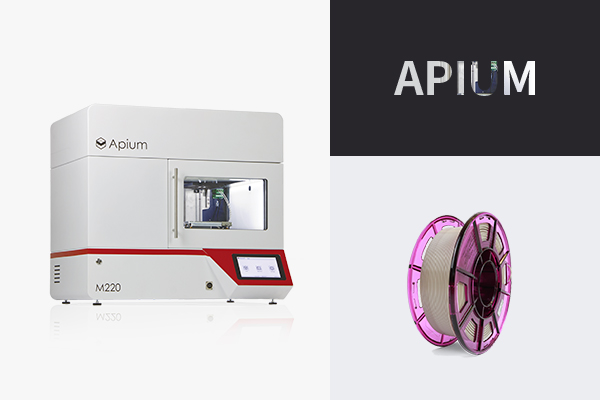

The APIUM M220 3D printer is a 3D printer designed for the manufacture of medical products and PEEK implants. It is possible to produce personalized orthopedic implants by 3D printing to meet clinical and scientific needs (material engineering, biological tissue engineering).

VESTAKEEP® i4 3DF is an extruded filament made of natural, high-viscosity VESTAKEEP® i4 G polyetheretherketone (PEEK) resin. The material is designed for permanent implantable medical devices.

In recent years, 3D printed PEEK implants have been used in spine, joints, trauma, oral craniomaxillofacial, neurosurgery, plastic surgery, etc. Printing and implantation in hospitals is just the beginning, and will be standardized in the future for the benefit of humanity. We have a complete set of data analysis and personalized solutions for 3D printed PEEK implants, please feel free to call us for more information.
