Advantages and Limitations of SLS Technology

Selective Laser Sintering (SLS®) is one of the most widely used additive manufacturing processes on the market and offers outstanding advantages.SLS® technology enables the design of parts with complex geometries without the need for support structures, thus increasing the possibilities for geometric complexity. This makes SLS® technology ideal for manufacturing high-performance, isotropic parts.

SLS® technology is particularly suitable for small and medium-sized production. Compared to other processes such as extrusion or photopolymerisation, SLS® technology offers the advantage of flexibility and customisation in small series production. This also gives companies a competitive edge by allowing rapid production and customised manufacturing on demand.

However, SLS® technology has been subject to a number of limitations in the past. the relatively high investment cost of SLS® equipment has limited adoption by many companies. In addition, SLS® technology has limitations in mass production, restricting its application to high volume requirements.

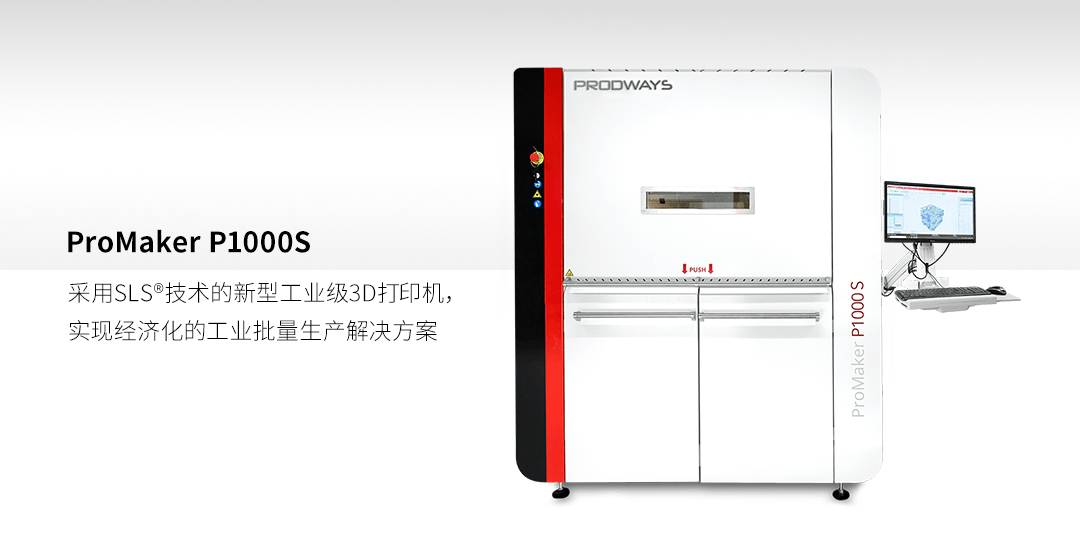

The ProMaker 1000S overcomes these challenges.

Features of the ProMaker 1000 S

1. Large Print Volume: The ProMaker P1000S has a generous print space to accommodate the printing needs of large parts. This provides users with greater design freedom and production flexibility.

2. Fast Printing: It features fast print speeds to complete print jobs efficiently. The print speed of 1.4 litres per hour enables users to get the parts they need faster.

3. high quality laser: it is equipped with a high quality 30W laser that ensures superior accuracy and quality of the printed parts. This enables the printed parts to meet the high demands of performance and accuracy.

4. Two Powder Supply Tanks: It is equipped with two powder supply tanks, enabling users to complete print jobs in a matter of hours without having to add powder frequently. This increases productivity and reduces downtime during production.

5. Ease of use and quick setup: Easy to use and quick to setup, you can be up and running in no time.

6. slicing function and print parameter optimisation: it has a fast slicing function so you can modify and add parts to production at any time. In addition, the ProMaker P1000S provides 50 print parameters that users can optimise to get the best print and production results.

Application examples of ProMaker 1000S

一、Automotive Manufacturing: ProMaker P1000S can be used for prototyping, custom part production and rapid tooling in automotive manufacturing. It accelerates product development cycles, providing rapid iteration and validation while reducing production costs.

Automotive parts with complex geometries

High Precision Casting

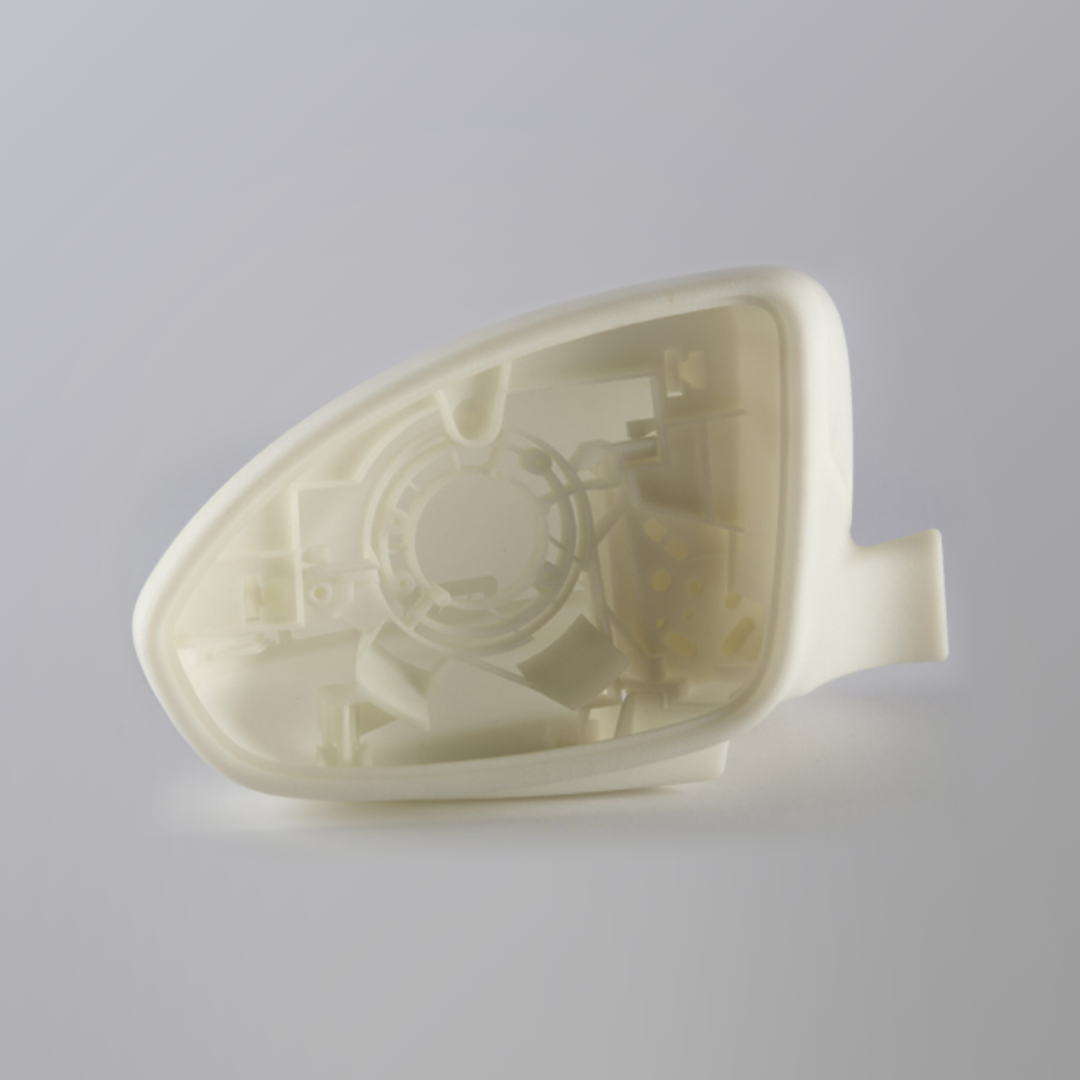

Automotive parts and components

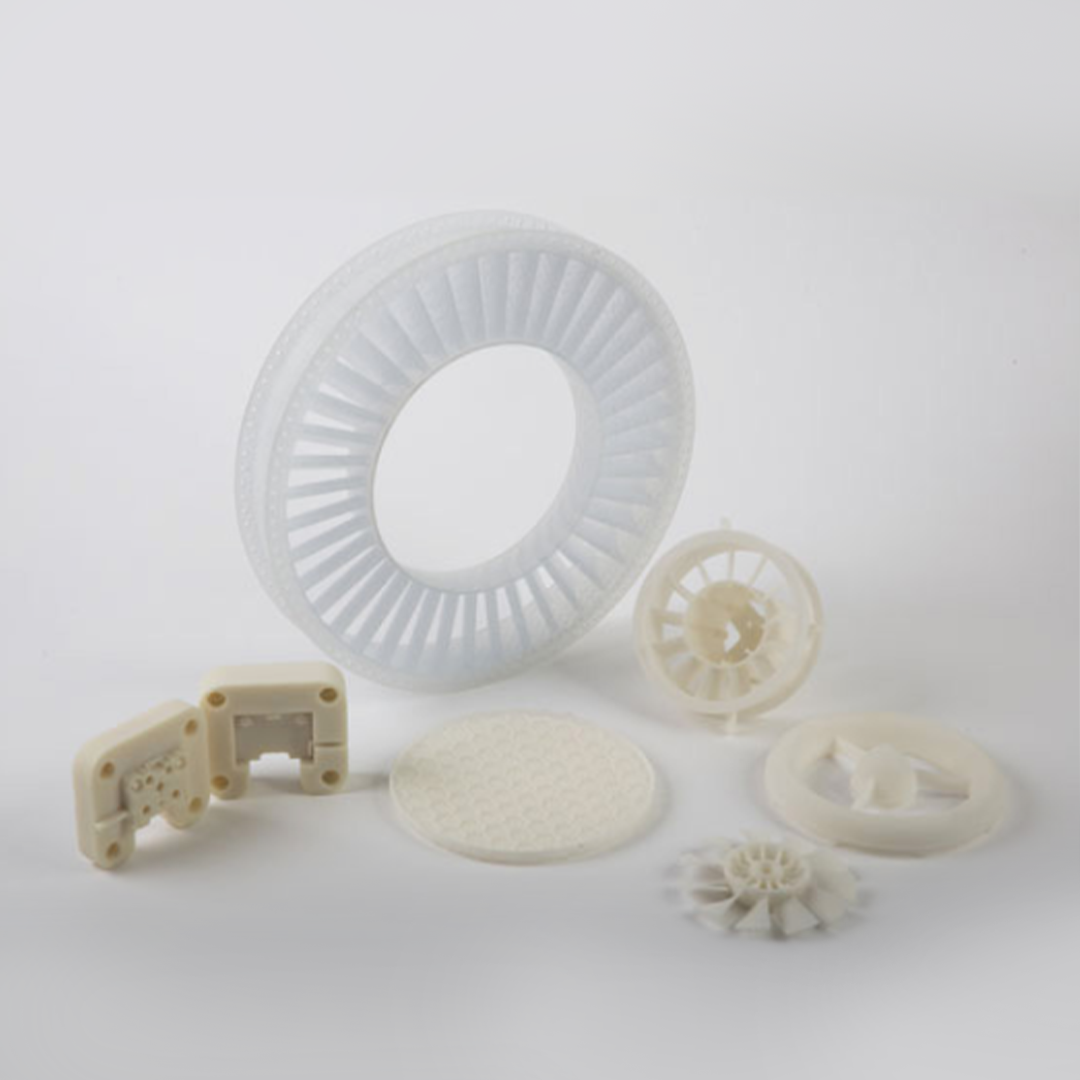

二、Aerospace: In the aerospace sector, it can be used to manufacture complex aerospace components such as jet engine assemblies, aero-cabin interiors and avionics.SLS® technology offers the possibility of high-performance and lightweight designs, while at the same time reducing the assembly and joining of components.

High Precision Master Mould

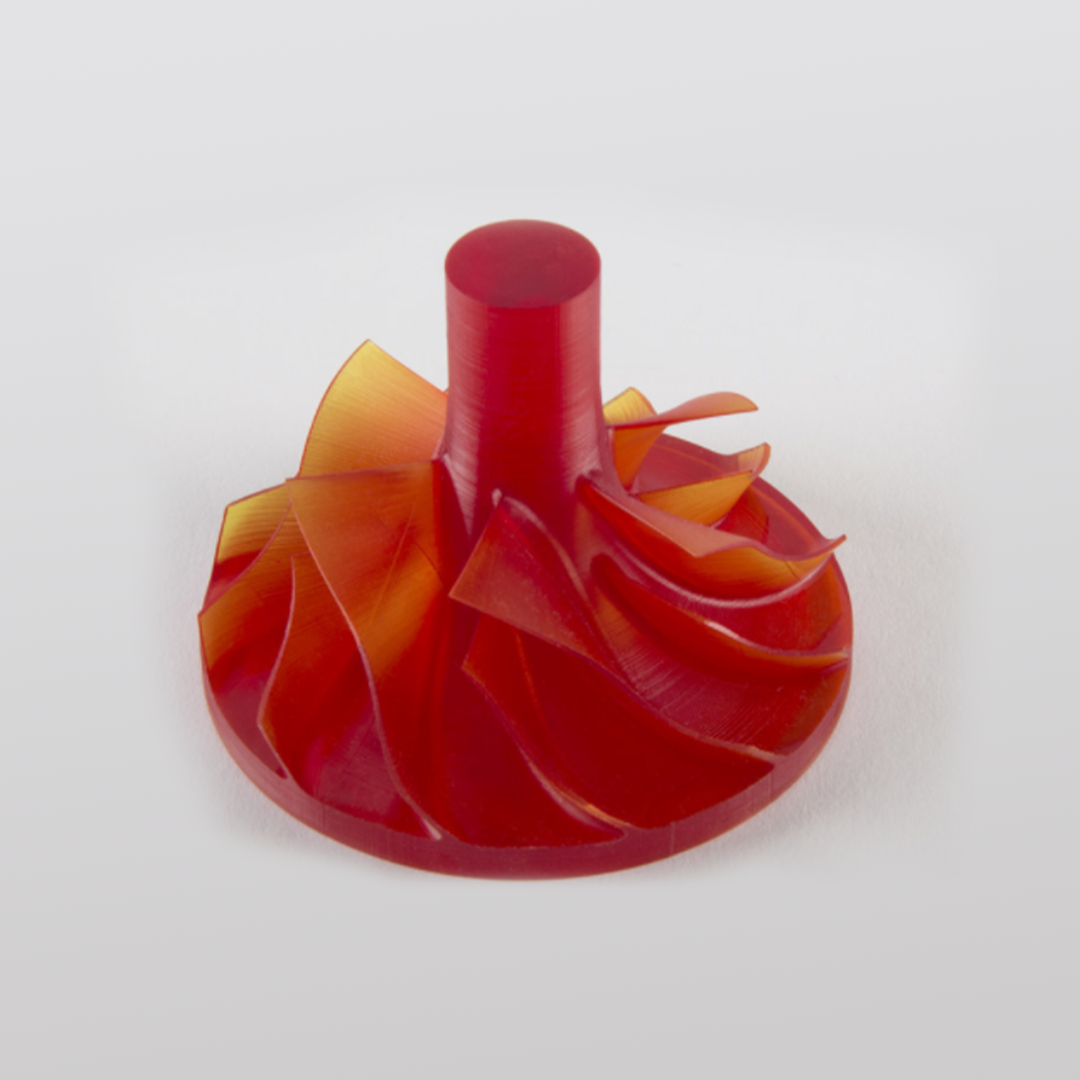

Blade reactor

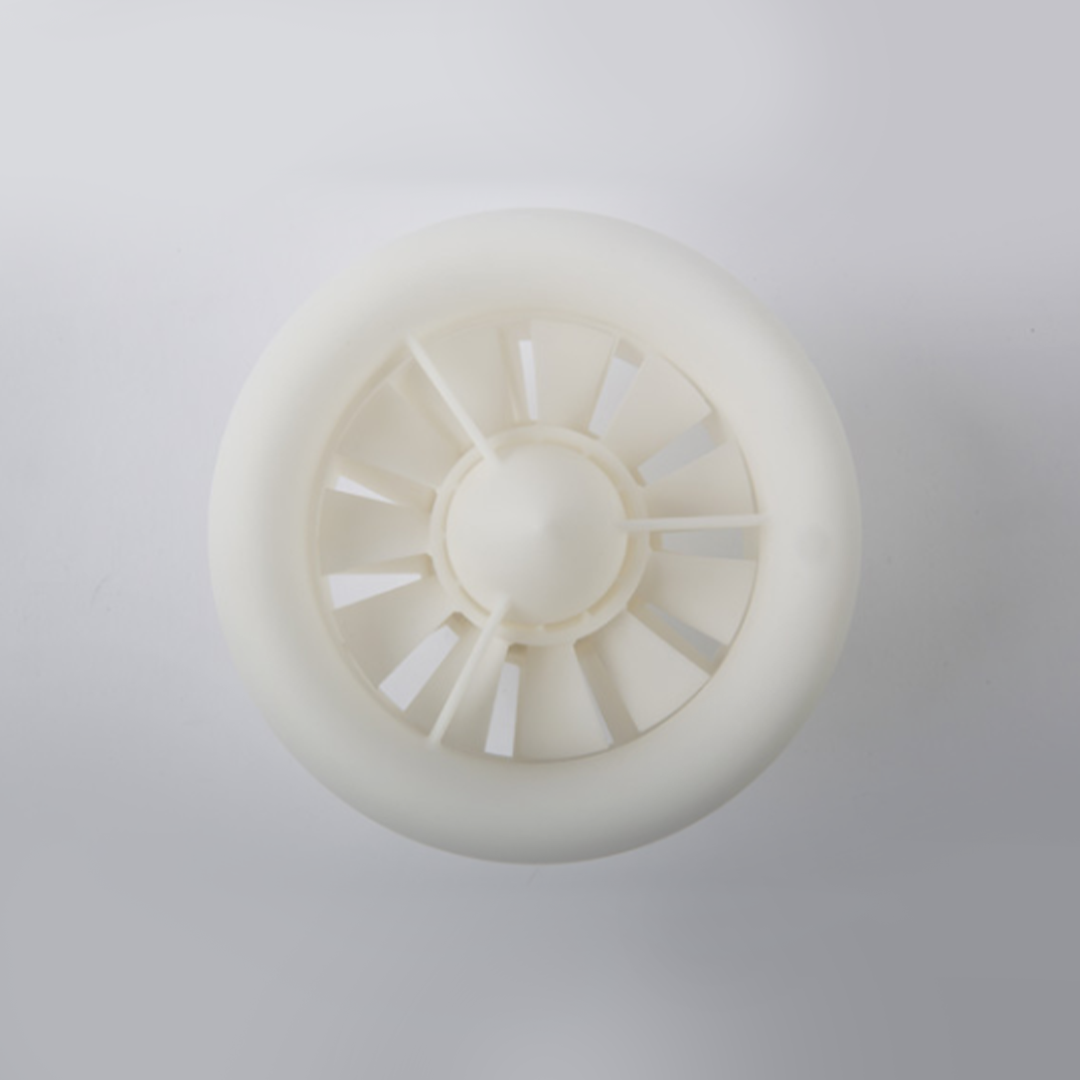

Engine components

三、Medical field: It is used in the manufacture of medical devices and prostheses. With SLS® technology, medical devices with complex structures and individualised features can be produced, improving patient outcomes and comfort. In addition, SLS® technology can be used to produce customised prostheses and artificial limbs, providing better fit and functionality.

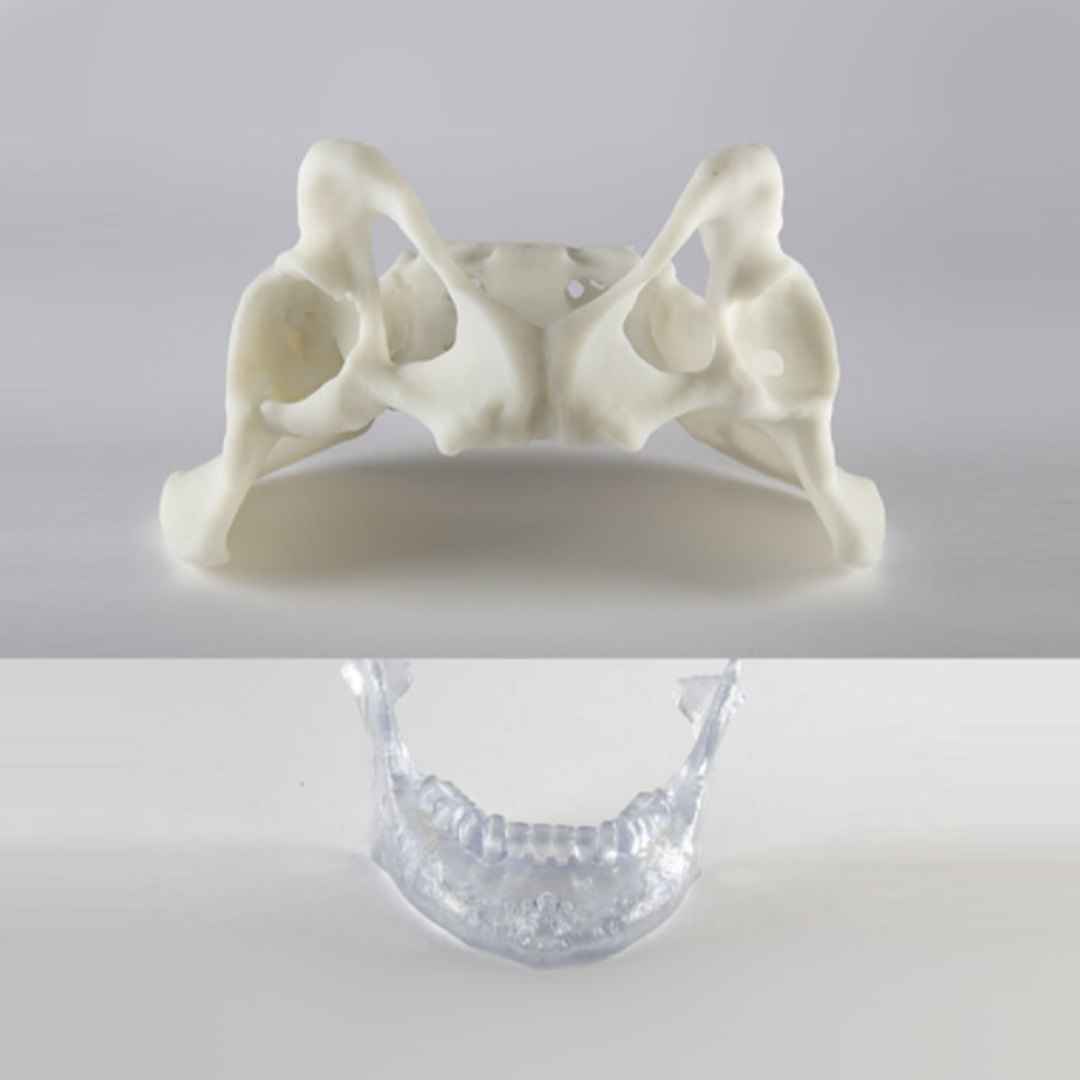

Surgical preview model

ProMaker P1000S: Successful application of SLS® technology to industrial production for efficient production and universal use. In the market, there are high-cost industrial-grade SLS® 3D printers and compact 3D printers limited by production volume. The ProMaker P1000S sits somewhere in between, offering a competitive price/print volume ratio. says Sylvestre Perrin, CEO of Prodways Printers SLS®: "Our goal is to open up industrial SLS® production to new application areas and more new users."

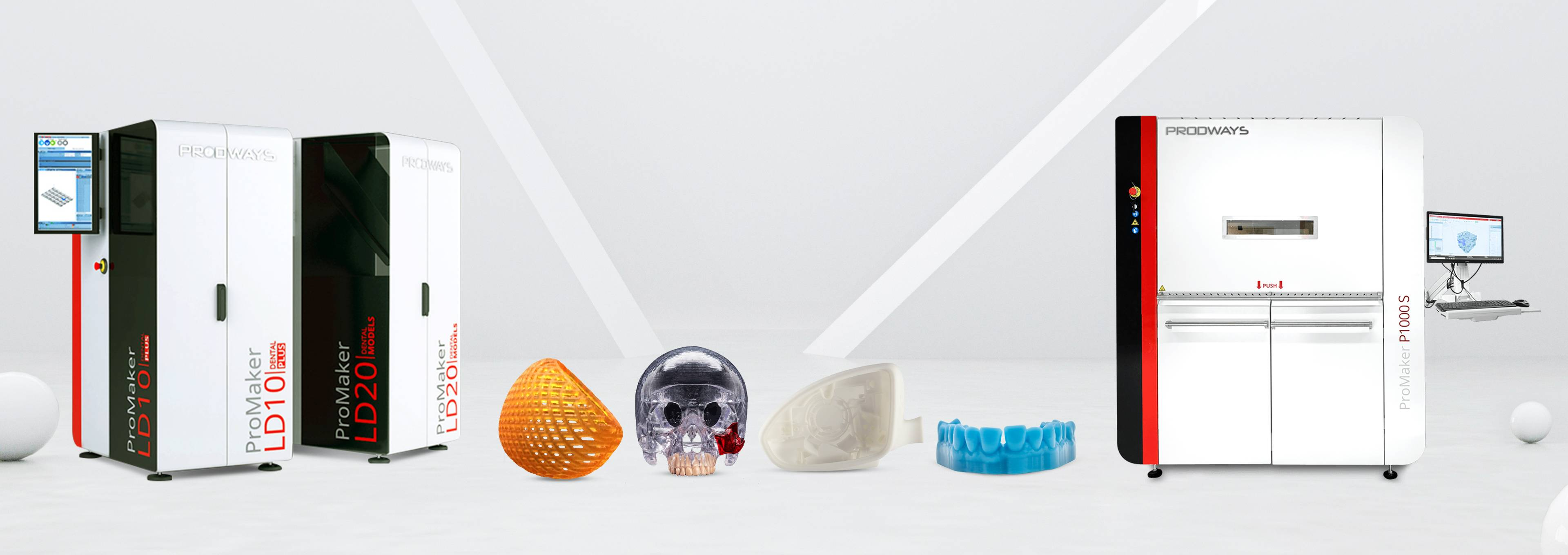

We will continue our commitment to promote the application of ProMaker P1000S to provide more users with advanced SLS® additive manufacturing solutions for efficient, flexible and innovative industrial production. Through technological advancement and partnership, we will jointly promote the sustainable development and prosperity of the manufacturing industry.
