Light machine light spot can be customized

For different fineness printing needs, P400 series can achieve spot customizable range of 32.5μm~65μm for ultra-high printing precision, which can easily achieve 100μm level of detail reproduction.

Light machine can be used continuously for 7*24 hours

P400 series use imported industrial grade DLP optical machine, small distortion, high light uniformity, very low light decay, and can achieve 7 * 24 hours using the intensity, slow continuity batch production needs.

Realization of small and medium volume production of end components

The P200 series of DLP 3D printers are suitable for direct manufacturing of high performance precision devices, thanks to high performance dedicated photosensitive resins combined with custom DLP optical machines with ultra-small light spots.

Proven Quality

Rayshape P400 series 3D printers have been proven by nearly many industrial customers and have withstood the test of the market with very reliable and durable features.
High Reliability Of DLP Technology

Rayshape P400 series industrial grade DLP 3D printer adopts imported industrial grade DLP optical machine, which can meet the demand of 7*24 hours of production grade usage intensity.
Excellent Ease Of Use

The P400 series is built on a strong performance foundation, but at the same time, has the ease of use of the professional-grade Shape series.

Rich Materials To Empower A Large Number Of Application Scenarios

Basic material series, functional material series

Small Batch Parts Manufacturing
Workholding Fixtures
Product Functionality Verification
Design Verification

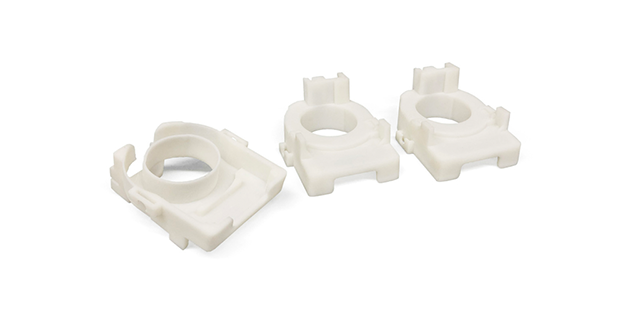

Small Batch Parts Manufacturing

Custom 3D printing offers companies a high degree of manufacturing flexibility and versatility. Produce small batches of customized parts anytime, anywhere, with one-time personalization, easier part replacement, and even small batch production. The print site can be decentralized and lined up, reducing equipment costs, improving lead times and optimizing the procurement process.

Workholding Fixtures

Increase production efficiency to a greater extent with 3D printed tools, fixtures and fixings. Explore the benefits of 3D printed industrial tooling for factories, faster setup and operation of machinery and equipment, reduced deviations in assembly and assembly processes, streamlined quality control and production processes, and other effects.

Product Functionality Verification

According to the functions of different design product needs, different materials are used to make products that meet functional needs to facilitate the functional needs that arise in production use, effectively reducing development costs, reducing equipment damage, and facilitating product production.

Design Verification

Product models can be built economically and quickly in-house, with targeted fine-tuning or modification to improve design pain points and difficulties, eliminating the traditional time-consuming and labor-intensive method of making appearance design models, and allowing iteration of arbitrary versions at virtually no additional cost.

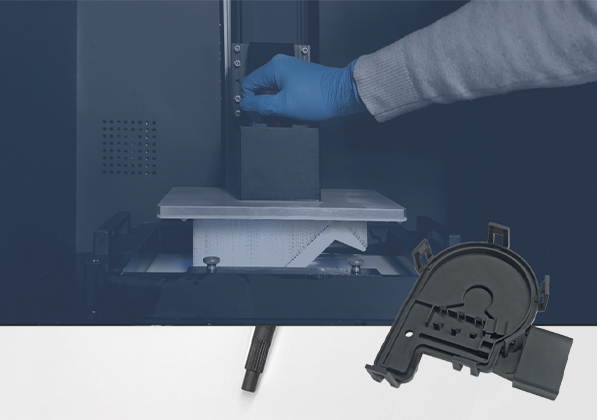

Molding Chamber Heated To 60°C

Enables printing of high-viscosity resins for mass production of high-performance precision devices


Quickly and directly enable mass production of end components

Based on the high performance resin system, users can use the P400 series equipment to quickly and directly manufacture end parts, small batches, flexible production or spare parts required for equipment facilities and product after-sales service.

High temperature and constant temperature printing of large molecular weight photosensitive resin

The molding bin of P400 series has a built-in high-power hot air system, which can heat the temperature of the molding bin to 60°C within 10 minutes to realize the printing of large molecular weight, high-viscosity photosensitive resin, which has the characteristics of high comprehensive mechanical strength and high physical property index.

From Now On, Large Size And High Precision Can Be Combined In The Same Device

4K DLP optical machine, 4 times the molding width of 1080P optical machine


Wide variety of materials

It can print various types of photosensitive resins, adapt to the full range of Rayshape consumables, high-temperature molding, and realize the optimization of the performance of printed samples.

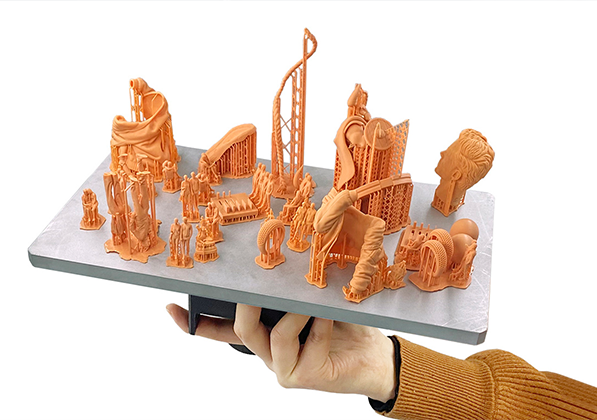

Higher capacity and size, better surface quality

It realizes the batch production of end devices, and at the same time, the layer pattern is negligibly fine and the surface quality is better. It is suitable for hand board factories, high value-added cultural and creative handicraft factories, shoe mold production, as well as the production of small and medium-sized end products and high-performance prototype verification.

Easy To Use Software, Quick To Get Started

Intelligent model analysis technology for a highly automated user experience

Auto-Rotation And Typesetting

With ShapeWare, you can optimize part angles with one click and rotate models to better print angles with one click for higher print efficiency and print quality.
Automatic Addition Of Support Structures

ShapeWare has high-precision, intelligent support functions, the fine structure of the complex model can also be effectively supported, and the support quality is high, the support structure is easy to remove.

Easy To Use, Safe And Secure

Years of technology accumulation to create a perfect product design

Print Bin Thermostat Control

The print bin has a built-in air circulation heating device to ensure that the printing process is not affected by the ambient temperature, so you can get stable and consistent print quality and print success rate all year round.
Print Bin Air Purification

The print bin has a built-in HEPA air filter, which keeps the air circulating and filtering during the printing process, maintaining the air quality of the office environment for a long time and reducing the impact of photosensitive resin on the environment.
Safety Door Design

To reduce the risk of use, Shape 1 series 3D printers, if the bin door is opened during the printing process, the printing process will be immediately suspended.

Specifications
Consumables
Hardware
Software
Size Weight

Model	P400	P400 HD	P400 UHD
Forming size	250 × 140 × 400 mm	192 × 108 × 395 mm	125 × 70 × 395 mm
Pixel size	65 μm	50μm	32.5μm
Technology Type	Low peel DLP light curing technology
Thick layer setting	0.025 - 0.3 mm
Forming speed	Up to 50 mm / h Print speed is related to the type of consumables used and print settings

Model

P400

P400 HD

P400 UHD

Available supplies

ShapeMaterials

Basic Series/Functional Series/Dental Series

Consumables capacity

1kg

Model	P400	P400 HD	P400 UHD
Light source	UV LED light source, Texas Instruments DMD chip
Light source band	405nm
Resolution	3840 x 2160 PX
Touch Screen	8" color capacitive screen
Transmission method	USB2.0, wireless network, Ethernet cable
Input	100-120 VAC，50/60Hz 220~240 VAC，50/60Hz (depending on the country/region of sale)
Whole machine power	1.45KW

Model	P400	P400 HD	P400 UHD
Operating System	Windows 7/8/10
File input format	.STL, .OBJ
File output format	.rs, .shape
Slicing Software	ShapeWare
High-level functions	Support editing, automatic repair, model cutting, shell extraction, hole punching, labeling
Wireless Printing	Supports one-click sending of print jobs to devices within the LAN
Cluster Management	Print jobs for multiple devices on a LAN
Software Languages	Chinese, English

Model	P400	P400 HD	P400 UHD
Equipment size	720 × 750 × 1800 mm
Equipment size Barn door open	1300 × 740 × 1800 mm
Equipment net weight	170 kg
Package Size	800× 800× 1930 mm
Packing weight	200kg
