FULLY INDEPENDENT

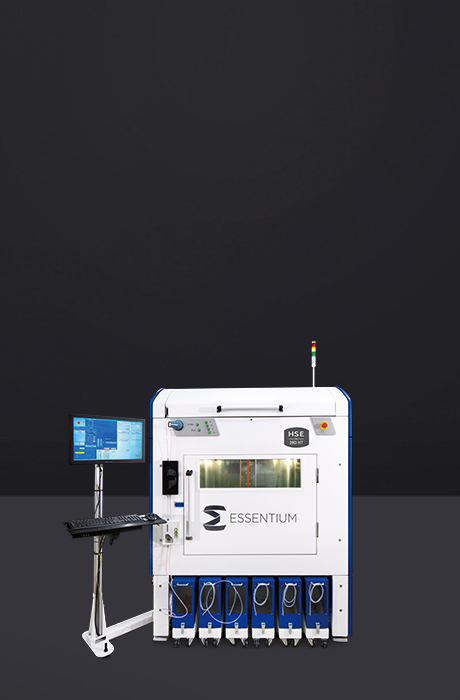

The HSE 280i HT 3D Printer is the industry’s first 3D printer equipped with true independent dual extruders (IDEX), meaning each head is fully independent on both the X and Y-axis.
At five to 15x faster than the competition, Essentium’s High Speed Extrusion (HSE) 3D Printing Platform is built to transform manufacturing floors and solve the issues of speed, strength, and scale. You can finally harness the flexibility of 3D printing with the productivity of traditional manufacturing.
The Essentium HSE 280i HT 3D Printing Platform is the first industrial 3D printer that offers true IDEX. Other IDEX machines on the market feature print heads that are placed on the same X-axis gantry, preventing independent movement on the Y-axis. This limits these “semi-IDEX” machines to print modes that are synchronous on the Y-axis.
One head, two nozzles
Prints primary filament and support material
Second nozzle may leave filament deposits
Two heads, independent movement in the X-axis
Prints with two materials and two identical parts
Fixed on the X-axis gantry, preventing independent movement on the Y-axis
Two heads, fully independent
Prints two materials, identical parts, or unique parts
Independent movement in the X and Y-axis effectively gives users two machines for the price of one
The Essentium HSE 280I HT 3D printer is designed for industrial production to meet demanding manufacturing environments and application requirements
Aerospace
Automotive
Biomedical
Consumer Goods
Manufacturing
Electronics manufacturing
Furniture and fixtures
The mould
Electronic assembly plate
Biomedical
Parts
Rapid Prototyping
The Essentium HSE 280i HT 3D Printer features five print modes. The true independence of the print heads in both the X and Y-axis gives users the flexibility to print parts at scale.
Single Head Mode uses one head to print five to 15x faster than competitors, equipping manufacturers to print at the speed of relevance.
Multi-Process Mode allows users to print with two materials or nozzle sizes ideal for parts with both flexible and rigid features.
Double productivity with Copy Mode. This mode unlocks the ability to print two identical parts simultaneously, ideal for AM at scale.
Support Mode makes it possible to print support for parts in progress using soluble or breakaway material, ideal for printing complex geometries.
Get two machines for the price of one with Independent Mode. This mode allows users to print two unique parts concurrently, ideal for low volume, high mix manufacturing.
| Print Heads | 2 | Nozzle Diameters | 0.4mm 0.8mm |
| Nozzle | Gen 5 Hozzle™ Heated Nozzle | Nozzle Temperature | Up to 550ºC |
| Build Chamber Temperature | Up to 200°C | Bed Plate Temperature | Up to 200°C |
| Printer Dimension | 1590 x 1350 x 2490 mm | Net Weight | 850 kg |
